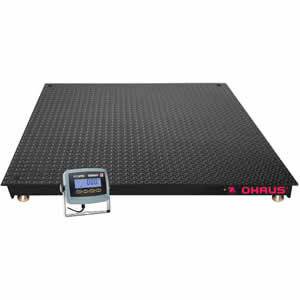

Ohaus VN Series (Dry Use Indicator and Platform)

Ohaus VN floor scales are industrial strength, legal for trade and intended for dry use applications, however NEMA 4X/IP65 Stainless Steel Side-Access Junction Box with IP67 load cells limits effect of water on base.  Treaded platform provides slip resistance with added stainless steel feet with rubber bottoms attached to each load cell. Ball-in-cap design makes feet self-swiveling and base easier to install.  Carbon steel eyebolts are also included to make the installation process easier.

Standard Features:

• REQUEST A QUOTE TODAY
• 5mm / 0.196" thick top plate with raised cross-hatch surface for added slip resistance
• Painted carbon steel weighing platform
• Four NTEP-certified shear beam load cells protected to IP67
• Side-access NEMA 4X / IP65 dust and water protected stainless steel junction box
• Four self-swiveling ball-in-cap feet, with top-access leveling adjustment for easy installation
• Internal structural bracing ensures platform rigidity
• Carbon steel eyebolts attached to side of platform for easy lifting and positioning
• Indicator includes backlit LCD display with 1” high digits, lb and kg weighing units, an 80-hour internal rechargeable battery and included AC adapter, counting mode for inventory applications and a wall bracket for easy mounting.

VN Series Floor Scales (Dry Use)
Model	Cap x Res	Platform Size
VN31P5000L	5,000 lb x 1 lb	4' x 4'
VN31P5000X	5,000 lb x 1 lb	5' x 5'

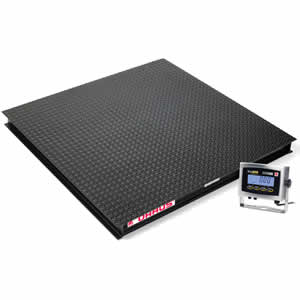

VX Series (Washdown Indicator and Painted Steel Platform)

OHAUS VX Series is a portable low-profile floor platform and indicator scale package for use at freight consolidators, forwarders, processing plants, resellers, shipping and receiving departments, as well as startup businesses.  VX floor scales and T31XW indicator each have washdown protection which is necessary in waste management or other industries where liquids will leak onto the scale.

Standard Features:

• REQUEST A QUOTE TODAY
• NTEP Certifications:
  • T31XW Indicator: CC 08-066
  • VX Platform: CC 08-069
  • Load cells: CC 91-043A4
• 2,500 lb, 5,000 lb, and 10,000 lb scale capacities
• 4’ x 4’ and 5’ x 5’ platforms with structural bracing that ensures a rigid construction
• 1/8” (up to 5,000lb models) and 5/16” (10,000lb models) thick top plate with raised cross-hatch surface for added durability and slip resistance
• Four IP67 nickel plated alloy steel load cells
• Side access NEMA4X/IP65 dust and water protected junction box with 25’ long cable
• Features eye bolt mounting holes to allow easier lifting and positioning of the platform
• Factory-wired and pre-calibrated with OHAUS T31XW stainless steel indicator featuring:
• Indicator Features:
  • 304 stainless steel construction with NEMA 4X/IP66 protection
  • Backlit LCD display with high-visibility 1” high digits
  • Five weighing units (lb, kg, g, oz, lb:oz)
  • Piece counting mode for warehousing and inventory applications
  • Wall mount bracket included

VX Series Semi-Washdown Floor Scales
Model	Cap x Res	Platform Size
VX32XW2500L	2,500 x 0.5 lb	4' x 4'
VX32XW5000L	5,000 x 1 lb	4' x 4'
